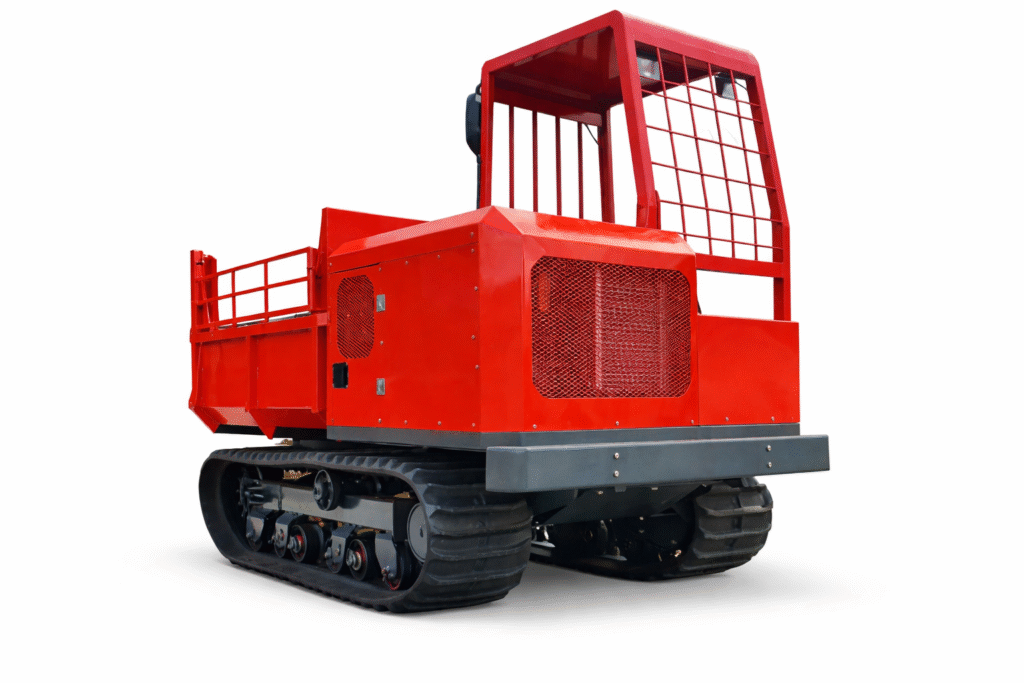

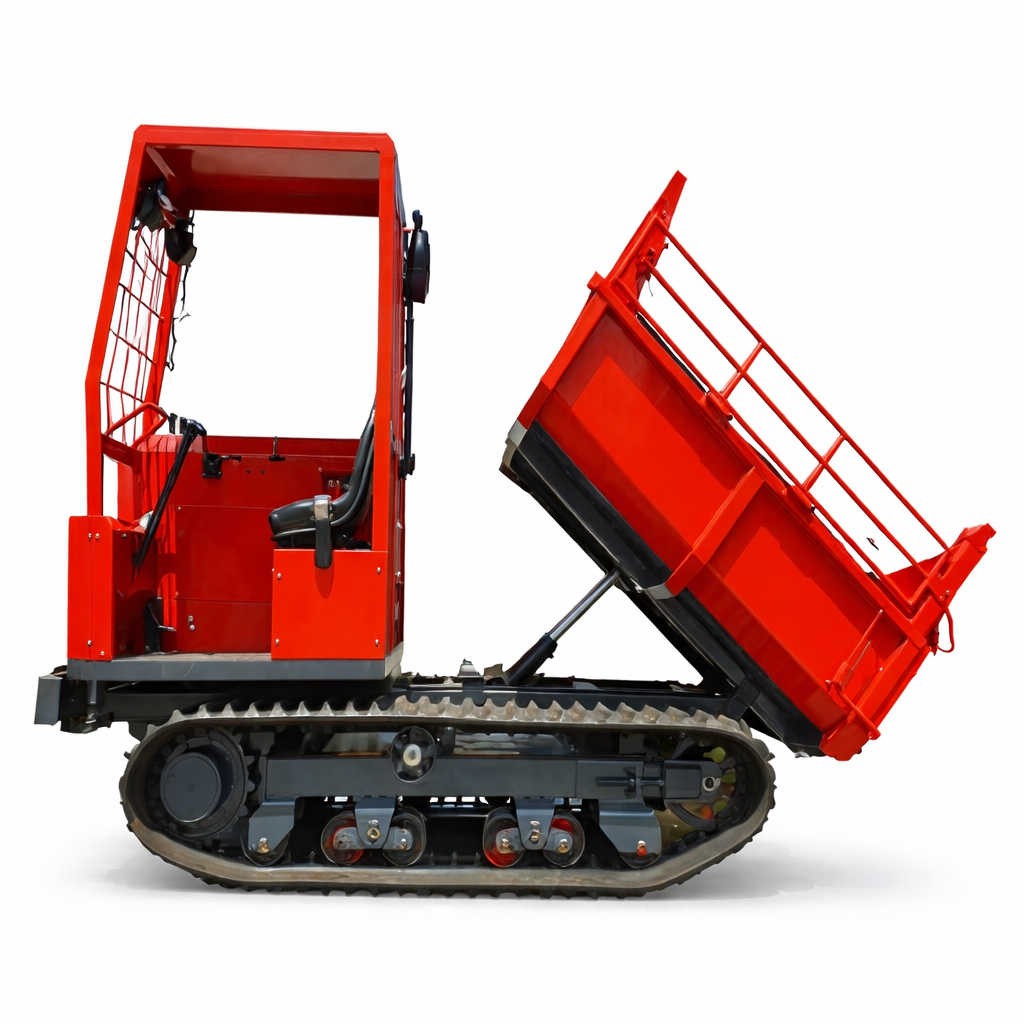

Startrac Scissor Dump
Categories : Crawler
UNIT DESCRIPTION
Desription |
Specification |
|
Bucket |
Model | Scissor Lift Hydraulic Dump |
| Bucket Capacity | 750 KGS | |
| Bucket Material | Mild Steel | |
| Bucket Size (L x W x H) | 1660 X 1180 X660MM | |
| Dumping Height | 1670 MM | |
Engine |
Model | YANMAR TF85MRE-DI |
| Motor Model | WATER-COOLED HORIZONTAL 4 STORKE DIESEL MOTOR | |
| Starter System | MANUAL AND ELECTRIC START | |
| Power | 8.5 HP / 2200 | |
| Fuel Capacity | 10.5 LITER | |
| Oil Capacity | 2.2 LITER | |
| Battery | 12 VOLT 70AH | |
Track, Speed & Dimension |
Crawler Size (Width x Pitch X Link) | 350 MM X 72 X 52 |
| Crawler Type | Rubber With Solid Steel Forged Links | |
| Tracel Speed | 4-5 KM/H | |
| Ground Clerance | 550MM | |
| Ground Clearance With Roller | 200MM | |
| Overall Size (L x W x H) | 2580 X 1240 X 1390 | |
| Overall Weight | 1138 KGS | |
